Models available: 3001, 3002, 3003

FusionONE Power Exam Tables

With the accessibility of a power table and the affordability of a box table, the FusionONE Exam Table offers the features healthcare providers need most.

This hi-lo exam table enables simple ADA access and ease of examination for patients of all ages and abilities.

FusionONE Series:

  • Model 3001
  • Model 3002
  • Model 3003
COMPARE PRODUCTS    REQUEST A QUOTE    REQUEST A TIP CARD

Features at a glance

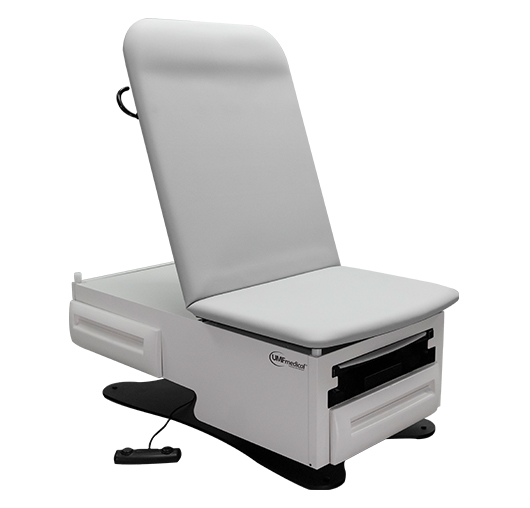

FusionONE Power Exam Chair Model 3001

Model Number: 3001

  • Power hi-lo and manual backrest
  • One-function foot control with hi-lo
  • Large, reversible side drawer and large front drawer
  • Drain pan: plastic 1.5” deep (3.81cm)
  • 18”-21” paper roll holder
  • Removable, seamless upholstered top with PreFixx® Protective Finish
  • Heavy-gauge steel extension leg pull-out to accommodate most patient heights

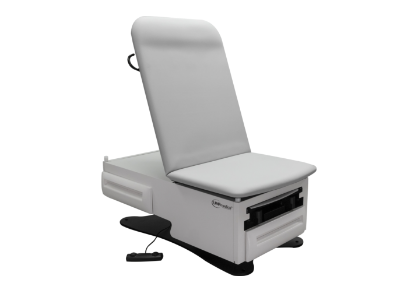

Model Number: 3002

  • Power hi-lo and manual backrest
  • One-function foot control with hi-lo
  • Large, reversible side drawer and large front drawer
  • Drain pan: plastic 1.5” deep (3.81cm)
  • 18”-21” paper roll holder
  • Removable, seamless upholstered top with PreFixx® Protective Finish
  • Heavy-gauge steel extension leg pull-out to accommodate most patient heights
  • PLUS
  • Stirrups with four lateral positions, adjustable length

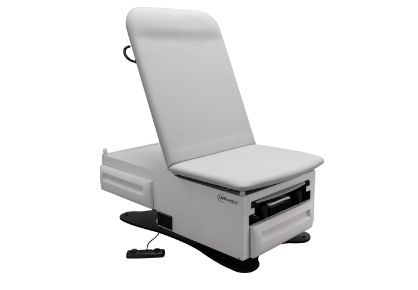

Model Number: 3003

  • Power hi-lo and manual backrest
  • One-function foot control with hi-lo
  • Large, reversible side drawer and large front drawer
  • Drain pan: plastic 1.5” deep (3.81cm)
  • 18”-21” paper roll holder
  • Removable, seamless upholstered top with PreFixx® Protective Finish
  • Heavy-gauge steel extension leg pull-out to accommodate most patient heights
  • Stirrups with four lateral positions, adjustable length
  • PLUS
  • Pelvic tilt (7°)
  • Drawer warmer
  • Electrical receptacle

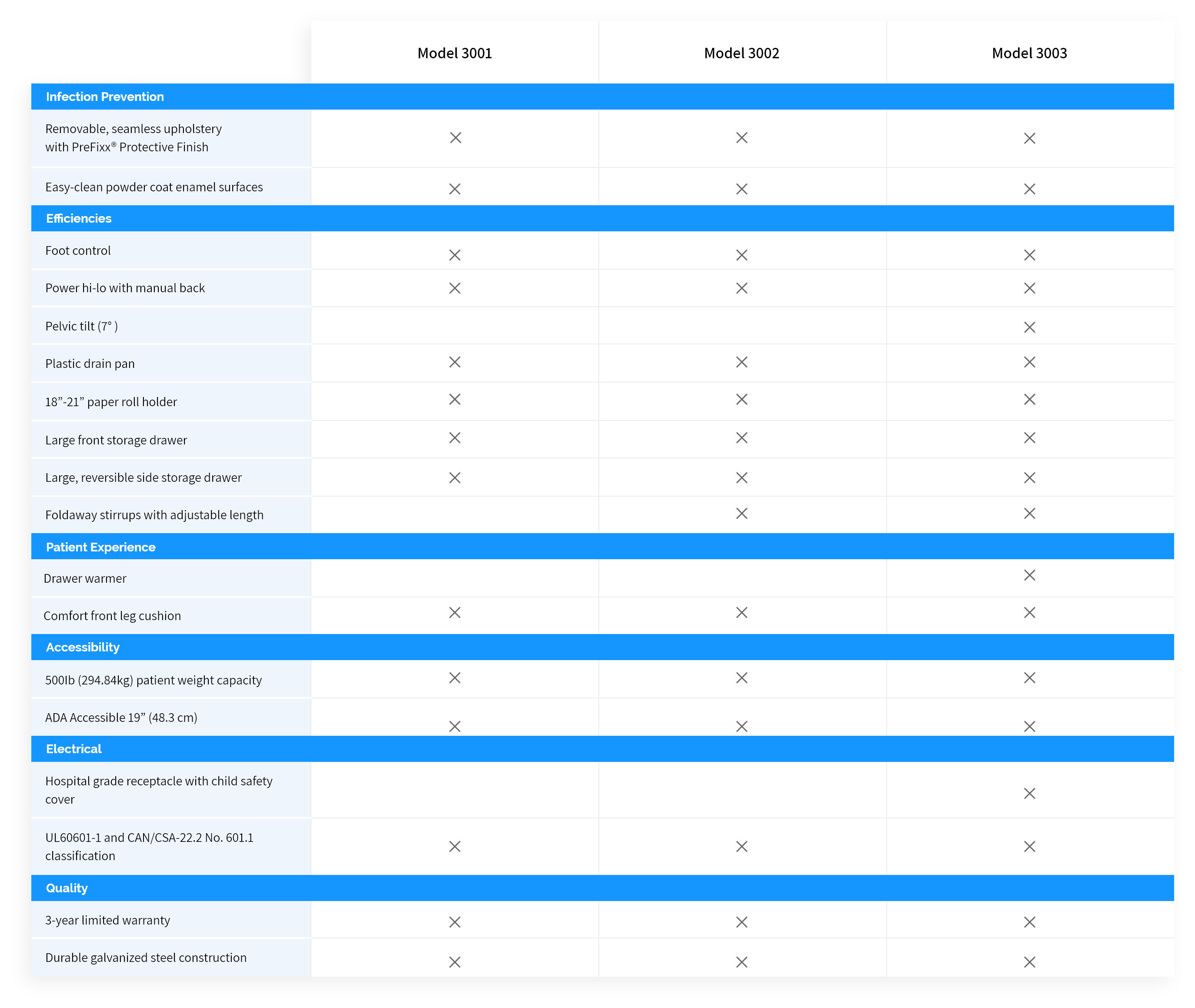

Compare all table features

Available in

Soft Linen swatch

Soft Linen

Cement swatch

Smoky Cashmere

Warm Sand swatch

Warm Sand

Creamy Latte swatch

Creamy Latte

Chocolate Truffle swatch

Chocolate Truffle

Lemon Meringue swatch

Lemon Meringue

Cherry Blossom swatch

Cherry Blossom

Blue Skies swatch

Blue Skies

Lakeside Blue swatch

Lakeside Blue

Twilight Blue swatch

Twilight Blue

Morning Fog swatch

Morning Fog

Fine Wine swatch

Fine Wine

True Graphite swatch

True Graphite

Classic Black swatch

Classic Black

Mint Leaf swatch

Mint Leaf

Deep Forest swatch

Deep Forest

See the FusionONE™ Exam Chair LIVE!

Click here to register for one of our live, online demos.

See specifications and accessories

Specifications

Height: min. 19” (48.3 cm) at seat max. 32” (81.3 cm) Width: 28” (71.12cm)
Length: 58”-76” with foot section extended (147.3 cm – 193.0 cm) Leg rest: 18” W x 18” D (45.7 cm W x 45.7 cm D)
Storage drawer (front): 18.0” W x 12.0” D x 3.0” H (46 cm x 30 cm x 8 cm) Storage drawer (side): 17.5” W x 21.0” D x 5.0” H (44 cm x 53 cm x 13 cm)
Single column electro-magnetic actuator International model: 3001-01
Electrical: 120-240 VAC, 50-60 HZ Weight capacity: 500lb (226.8kg)
Net weight: 300lb (136kg) Shipping weight: 350lb (159kg)
Shipping dimensions: 30” W x 64” L x 31” H (76 cm x 163 cm x 79 cm)
Accessories
580 Hand Control 585 Armrests
