5016 Podiatry/Wound Care Procedure Chairs
The 5016 Podiatry/Wound Care Procedure Chair Series are products of extensive research and clinical feedback, developed to improve patient care and streamline the work of healthcare providers.
Designed for podiatry and wound care procedures, these chairs accommodate the needs of most patients.
5016 Series:
- Power5016 Podiatry/Wound Care Procedure Chair
- Power5016p Podiatry/Wound Care Procedure Chair
- ProGlide5016 Podiatry/Wound Care Procedure Chair
COMPARE PRODUCTSREQUEST A QUOTEREQUEST A TIP CARD
Request a Quote
Category: Power Procedure Chairs
Product Name: 5016 Podiatry/Wound Care Procedure Chairs
Features at a glance


Model Number: 5016-650-100
- Power hi-lo, back, tilt & leg extension
- Removable seamless upholstered top with Prefixx® Protective Finish
- Hand control with OneTouch Patient Positioning® System
- Double-articulating headrest


Model Number: 5016-650-200
- Power hi-lo, back, tilt & leg extension
- Removable seamless upholstered top with Prefixx® Protective Finish
- Hand control with OneTouch Patient Positioning® System
- Double-articulating headrest
- PLUS
- Foot control with OneTouch Patient Positioning® System


Model Number: 5016-650-300
- Power hi-lo, back, tilt & leg extension
- Removable seamless upholstered top with Prefixx® Protective Finish
- Hand control with OneTouch Patient Positioning® System
- Double-articulating headrest
- Foot control with OneTouch Patient Positioning® System
- PLUS
- OneTouch Wheelbase® System

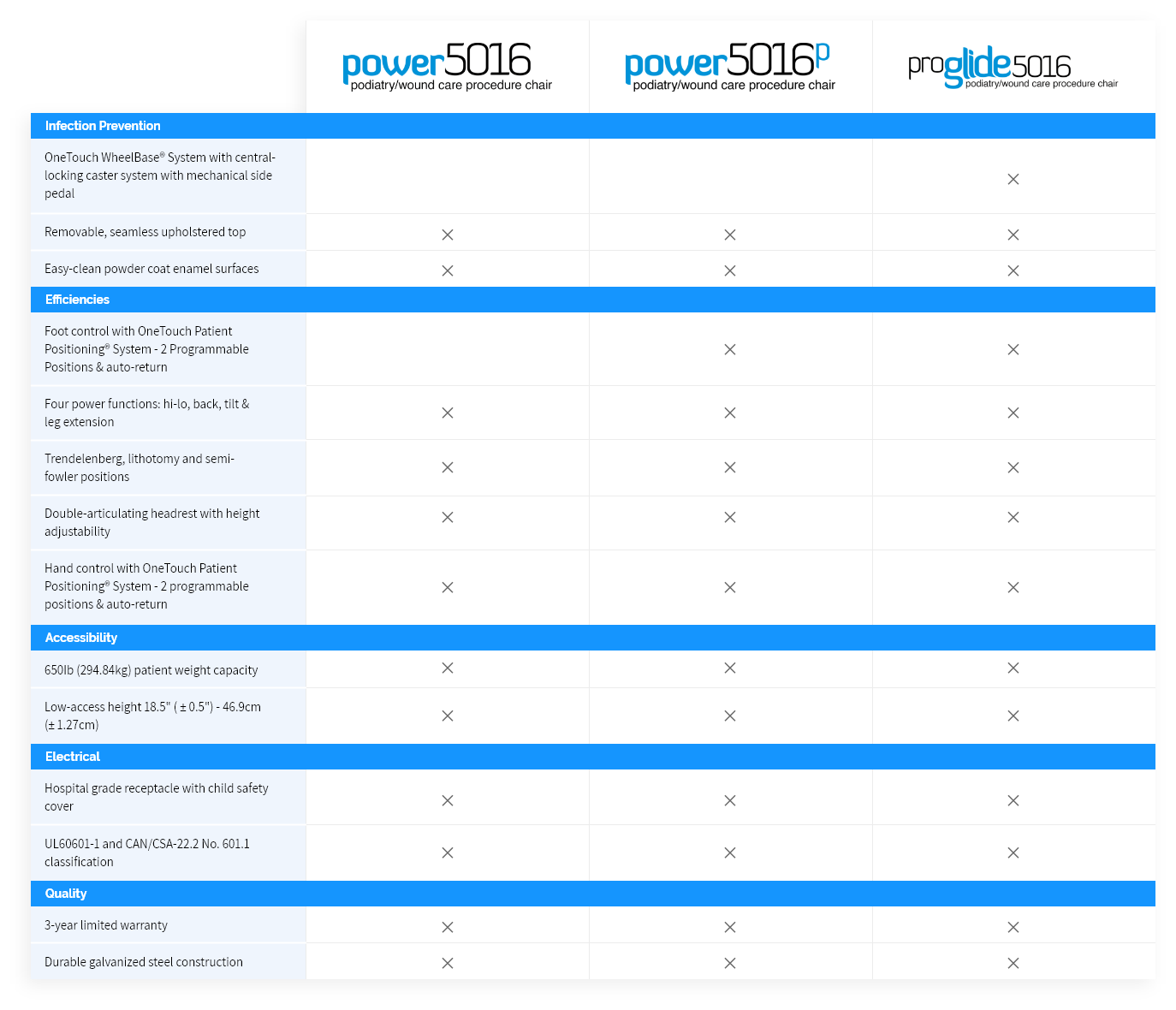

Compare all chair features
Available in

Soft Linen

Smoky Cashmere

Warm Sand

Creamy Latte

Chocolate Truffle

Lemon Meringue

Cherry Blossom

Blue Skies

Lakeside Blue

Twilight Blue

Morning Fog

Fine Wine

True Graphite

Classic Black

Mint Leaf

Deep Forest



Protect your patients, staff, and facility with the OneTouch WheelBase® System
Featured on the ProGlide5016
Podiatry/Wound Care Procedure Chair
- Protects your patients from infection by allowing for quick and easy cleaning around and under the exam table
- Eliminates the need for heavy lifting and pushing
- Prevents damage to your floors and walls when moving exam tables, and prevents dents in your tables when waxing floors
- Flex your space for your rapidly changing health care needs – adjust the table placement for different caregiver needs, to make room for a stretcher, or to change the room layout

See specifications and accessories
Specifications
Power5016
Power5016p
ProGlide 5016
Height: Min. 18.5” (± .5”) 46.9cm (±1.27cm) at seat max. 37” at seat (93.9cm) | Electrical: 120 VAC, 60HZ - 220/240V, 50/60Hz |
Seat width: 28” (71.12cm) | International model: 5016-650-101 |
Back width: 26.5” (67.31cm) | Net weight: 411lb (186kg) |
Length: 73”-80” with foot section extended (185.42cm – 203.2cm) | Shipping weight: 451lb (205kg) |
Leg rest: 28” W x 13” D (71.12cm W x 33.02cm D) | Shipping dimensions: L64 x W30 x H41 (163cm x 76cm x 104cm) |
Dual electro-mechanical actuator system for efficient speed | |
Accessories | |
044 Adjustable / self-leveling arms (pair) | 474 Welch Allyn light bkt capabilities for #48955 (patient right) |
045 Universal Accessory Rail Installed on Seat Section | 830 Patient safety strap (factory installed only) |
051 Removable rectangular headrest | 873 220v outlet package (factory installed) (international) |
238 Fixed armboard package(EA) | 910 Easy power table installation kit |
239 Articulating armboard package (EA) | |
473 Welch Allyn light bkt capabilities for #48955 (patient left) |
Height: Min. 18.5” (± .5”) 46.9cm (±1.27cm) at seat max. 37” at seat (93.9cm) | Electrical: 120 VAC, 60HZ - 220/240V, 50/60Hz |
Seat width: 28” (71.12cm) | International model: 5016-650-201 |
Back width: 26.5” (67.31cm) | Net weight: 421lb (191kg) |
Length: 73”-80” with foot section extended (185.42cm – 203.2cm) | Shipping weight: 461lb (209kg) |
Leg rest: 28” W x 13” D (71.12cm W x 33.02cm D) | Shipping dimensions: L64 x W30 x H41 (163cm x 76cm x 104cm) |
Dual electro-mechanical actuator system for efficient speed | |
Accessories | |
044 Adjustable / self-leveling arms (pair) | 473 Welch Allyn light bkt capabilities for #48955 (patient left) |
045 Universal Accessory Rail Installed on Seat Section | 474 Welch Allyn light bkt capabilities for #48955 (patient right) |
051 Removable rectangular headrest | 830 Patient safety strap (factory installed only) |
238 Fixed armboard package (EA) | 873 220v outlet package (factory installed) (international) |
239 Articulating armboard package (EA) | 910 Easy power table installation kit |
Height: Min. 18.5” (± .5”) 46.9cm (±1.27cm) at seat max. 37” at seat (93.9cm) | Electrical: 120 VAC, 60HZ - 220/240V, 50/60Hz |
Seat width: 28” (71.12cm) | International model: 5016-650-301 |
Back width: 26.5” (67.31cm) | Net weight: 421lb (191kg) |
Length: 73” – 80” with foot section extended (185.42cm – 203.2cm) | Shipping weight: 461lb (209kg) |
Leg rest: 28” W x 13” D (71.12cm W x 33.02cm D) | Shipping dimensions: L64 x W30 x H41 (163cm x 76cm x 104cm) |
Dual electro-mechanical actuator system for efficient speed | |
Accessories | |
044 Adjustable / self-leveling arms (pair) | 473 Welch Allyn light bkt capabilities for #48955 (patient left) |
045 Universal Accessory Rail Installed on Seat Section | 474 Welch Allyn light bkt capabilities for #48955 (patient right) |
051 Removable rectangular headrest | 830 Patient safety strap (factory installed only) |
238 Fixed armboard package (EA) | 873 220v outlet package (factory installed) (international) |
239 Articulating armboard package (EA) | 910 Easy power table installation kit |
