Images are for illustrative purposes only and may show optional features or accessories. Actual products may vary. Due to monitor settings, colors may vary from the images shown. Contact UMF Medical to confirm specifications and options.
Models available: Power100+, Power200, ProGlide300+
4070 Manual Back Exam Tables
The 4070 Manual Back Exam Tables Series are products of extensive research and clinical feedback, developed to improve patient care and streamline the work of healthcare providers.
Designed for exams, these tables accommodate the needs of most patients.
4070 Series:

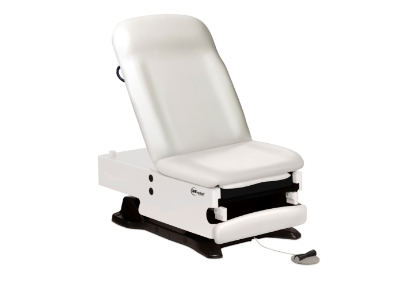

- Power100 Power Exam Table

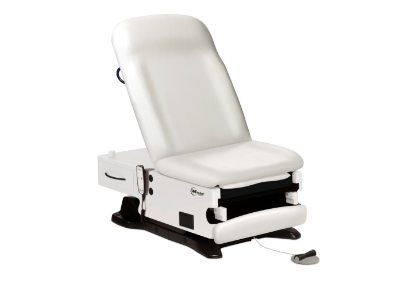

- Power200 Power Exam Table

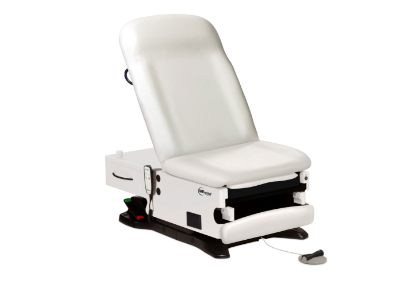

- ProGlide300 Power Exam Table
COMPARE PRODUCTSREQUEST A QUOTEREQUEST A TIP CARD
Request a Quote
Category: Power Procedure Chairs
Product Name: 4070 Manual Back Exam Tables
Features at a glance
Model Number: 4070-650-100
- Removable seamless upholstered top with Prefixx® Protective Finish
- Foot control
- Front storage drawer
- Power hi-lo and manual backrest
- Drain pan: stainless steel 1.5" deep (3.81cm)
- 18” – 21” paper roll holder (53.3cm)
Model Number: 4070-650-200
- Removable seamless upholstered top with Prefixx® Protective Finish
- Foot control
- Front storage drawer
- Power hi-lo and manual backrest
- Drain pan: stainless steel 1.5" deep (3.81cm)
- 18” – 21” paper roll holder (53.3cm)
- PLUS
- Rear storage drawer
- Hand control with OneTouch Patient Positioning® System
- Receptacle
Model Number: 4070-650-300
- Removable seamless upholstered top with Prefixx® Protective Finish
- Foot control
- Front storage drawer
- Rear storage drawer
- Power hi-lo and manual backrest
- Drain pan: stainless steel 1.5" deep (3.81cm)
- 18” – 21” paper roll holder (53.3cm)
- Hand control with OneTouch Patient Positioning® System
- Receptacle
- PLUS
- Drawer warmer
- OneTouch Wheelbase® System

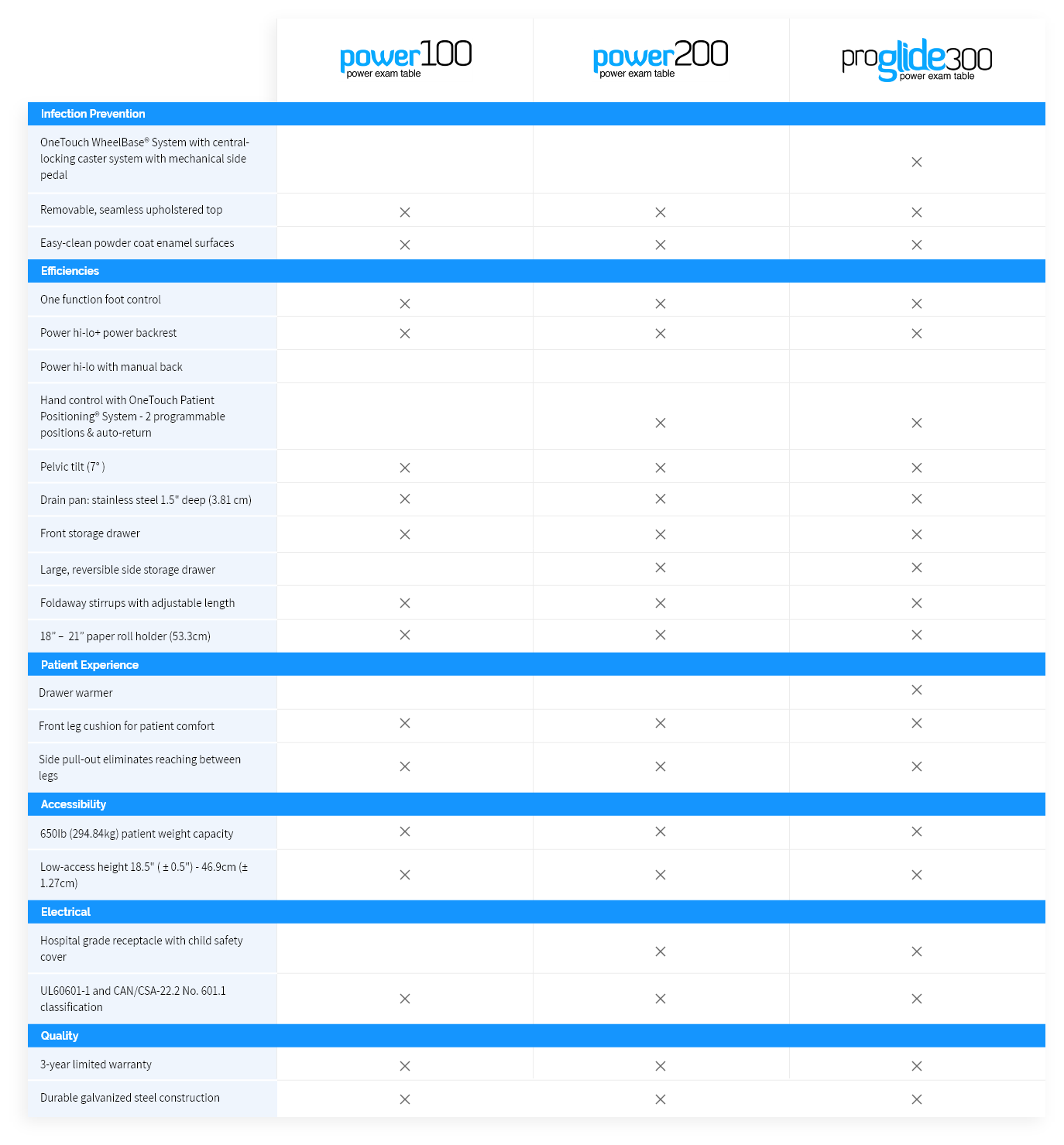

Compare all table features
Available in
Soft Linen
Smoky Cashmere
Warm Sand
Creamy Latte
Chocolate Truffle
Lemon Meringue
Cherry Blossom
Blue Skies
Lakeside Blue
Twilight Blue
Morning Fog
Fine Wine
True Graphite
Classic Black
Mint Leaf
Deep Forest
Protect your patients, staff, and facility with the OneTouch WheelBase® System
Featured on the ProGlide300
Power Exam Table
- Protects your patients from infection by allowing for quick and easy cleaning around and under the exam table
- Eliminates the need for heavy lifting and pushing
- Prevents damage to your floors and walls when moving exam tables, and prevents dents in your tables when waxing floors
- Flex your space for your rapidly changing health care needs – adjust the table placement for different caregiver needs, to make room for a stretcher, or to change the room layout
See specifications and accessories
Specifications
Power100
Power200
ProGlide300
| Height: Min. 18.5” (± .5”) 46.9cm (±1.27cm) at seat max. 37” at seat (93.9cm) | Dual electro-mechanical actuator system for efficient speed |
| Width: 28” (71.12cm) | Electrical: 120 VAC, 60 HZ |
| Length: 57” – 76” with foot section extended (144.7cm - 193cm) | International model: 4070-650-101 220/240V, 50/60Hz |
| Weight Capacity: 650lb (294.84kg) | Net weight: 400lb (181kg) |
| Leg rest: 19” W x 13” D (48.26cm W x 33cm D) | Shipping weight: 445lb (202kg) |
| Front storage drawer: 19” W x 12” D (48.26cm W x 30.48cm D) | Shipping dimensions: L64 x W30 x H31 (163cm x 76cm x 79cm) |
| Stirrups: Four lateral positions, adjustable length | |
| Accessories | |
| 042 Patient assist arms complete (pair) (field installable) | 471 Front Mounting Plate for Welch Allyn Light Bracket #48955 (Patient Left), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| 045 Universal Accessory Rail-Seat Section | 472 Front Mounting Plate for Welch Allyn Light Bracket #48955 (Patient Right), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| 234 Two Hook IV pole kit (includes IV pole and clamp) | 822 Removable stainless steel drain pan w/spout |
| 235 Four Hook IV pole kit (includes IV pole and clamp) | 870 110v drawer warmer (factory installed) |
| 236 Fixed arm board package (EA) | 871 110v outlet package (factory installed) |
| 237 Articulating arm board package (EA) | 872 220v drawer warmer (factory installed) (international) |
| 251 Bierhoff knee crutches (pair) | 873 220v outlet package (factory installed) (international) |
| 467 Side Mounting plate for Welch Allyn Light Bracket #48955 (Patient Right), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 | 910 Easy power table installation kit |
| 468 Side Mounting plate for Welch Allyn Light Bracket #48955 (PatientLeft), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| Height: Min. 18.5” (± .5”) 46.9cm (±1.27cm) at seat max. 37” at seat (93.9cm) | Dual electro-mechanical actuator system for efficient speed |
| Width: 28” (71.12cm) | Electrical: 120 VAC, 60 HZ |
| Length: 57” – 76” with foot section extended (144.7cm - 193cm) | International model: 4040-650-201 220/240V, 50/60Hz |
| Weight Capacity: 650lb (294.84kg) | Net weight: 440lb (200kg) |
| Leg rest: 19” W x 13” D (48.26cm W x 33cm D) | Shipping weight: 480lb (218kg) |
| Front storage drawer: 19” W x 12” D (48.26cm W x 30.48cm D) | Shipping dimensions: L64 x W30 x H31 (163cm x 76cm x 79cm) |
| Stirrups: Four lateral positions, adjustable length | |
| Accessories | |
| 042 Patient assist arms complete (pair) (field installable) | 468 Side Mounting plate for Welch Allyn Light Bracket #48955 (PatientLeft), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| 045 Universal Accessory Rail-Seat Section | 471 Front Mounting Plate for Welch Allyn Light Bracket #48955 (Patient Left), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| 234 Two Hook IV pole kit (includes IV pole and clamp) | 472 – Front Mounting Plate for Welch Allyn Light Bracket #48955 (Patient Right), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| 235 Four Hook IV pole kit (includes IV pole and clamp) | 822 Removable stainless steel drain pan w/spout |
| 236 Fixed arm board package (EA) | 870 110v drawer warmer (factory installed) |
| 237 Articulating arm board package (EA) | 872 220v drawer warmer (factory installed) (international) |
| 251 Bierhoff knee crutches (pair) | 910 Easy power table installation kit |
| 467 Side Mounting plate for Welch Allyn Light Bracket #48955 (Patient Right), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| Height: Min. 18.5” (± .5”) 46.9cm (±1.27cm) at seat max. 37” at seat (93.9cm) | Dual electro-mechanical actuator system for efficient speed |
| Width: 28” (71.12cm) | Electrical: 120 VAC, 60 HZ |
| Length: 57” – 76” with foot section extended (144.7cm - 193cm) | International model: 4040-650-301 220/240V, 50/60Hz |
| Weight Capacity: 650lb (294.84kg) | Net weight: 470lb (213kg) |
| Leg rest: 19” W x 13” D (48.26cm W x 33cm D) | Shipping weight: 510lb (231kg) |
| Front storage drawer: 19” W x 12” D (48.26cm W x 30.48cm D) | Shipping dimensions: L64 x W30 x H31 (163cm x 76cm x 79cm) |
| Stirrups: Four lateral positions, adjustable length | |
| Accessories | |
| 042 Patient assist arms complete (pair) (field installable) | 468 Side Mounting plate for Welch Allyn Light Bracket #48955 (PatientLeft), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| 045 Universal Accessory Rail-Seat Section | 471 Front Mounting Plate for Welch Allyn Light Bracket #48955 (Patient Left), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| 234 Two Hook IV pole kit (includes IV pole and clamp) | 472 – Front Mounting Plate for Welch Allyn Light Bracket #48955 (Patient Right), Compatible with WA Green Series Light 48810, Field Installable, for Series 4040-650, 4070-650 |
| 235 Four Hook IV pole kit (includes IV pole and clamp) | 822 Removable stainless steel drain pan w/spout |
| 236 Fixed arm board package (EA) | 872 220v drawer warmer (factory installed) (international) |
| 237 Articulating arm board package (EA) | 873 220v outlet package (factory installed) (international) |
| 251 Bierhoff knee crutches (pair) | 910 Easy power table installation kit |
